Opis

SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

The SMITH Heavy-duty Electric Stacker is a robust and efficient material handling solution designed to meet the demands of heavy-duty industrial environments. With a load capacity of 2000kg and a lifting height of 4500mm, this electric stacker is engineered to provide reliable performance in various material handling applications. Equipped with advanced features and high-quality components, the SMITH Heavy-duty Electric Stacker offers exceptional lifting capabilities, precise control, and enhanced safety, making it an ideal choice for warehouses, manufacturing facilities, and distribution centers.

Key Features of Heavy-duty Electric stacker SMITH 2000kg 450cm

1. Powerful AC Motor and ZF Friedrichshafen Transmission: The stacker is powered by a high-performance AC motor and ZF Friedrichshafen transmission, providing superior acceleration performance, improved work efficiency, and energy savings. This combination ensures smooth and efficient operation, allowing for seamless handling of heavy loads.
2. High Power MOSFETS Driver: The stacker features a high-power MOSFETS driver with high frequency, efficient, and quiet operation. It offers stepless speed regulation and reverse braking function, enhancing safety and control during operation. The improved temperature protection and compensation functions ensure thermal protection and stable output, contributing to the stacker’s overall reliability.
3. Integrated Operation Handle: The operation handle integrates essential controls, including the key switch, electric meter, horn, up and down buttons, and turtle speed switch, providing convenient and easy operation. The extended design of the operation handle aligns with ergonomic principles, offering comfortable and intuitive control for the operator.
4. Side Drive Design: The side-driven design effectively reduces the size of the operation channel, allowing for operation in narrow spaces. With a small turning radius and improved field of view, the stacker is well-suited for maneuvering in confined areas, optimizing operational efficiency.
5. YONGCI Motor Drive System: The stacker is equipped with a YONGCI motor drive system known for its small size, light weight, low loss, and high efficiency. This system enhances the overall performance of the stacker, providing reliable and responsive operation.

Specifications of SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

• Manufacturer: SMITH
• Model: CXL20GF
• Power Unit: Electric
• Operation: Pedestrian
• Load Capacity: 2000 kg
• Height of lowered stacker: 2100 mm
• Max lifting height: 4500 mm
• Free lift: 1686 mm
• Load Centre: 600 mm
• Fork size: 570*1150 mm
• Curtis Controller
• Load Capacity at Max Height: 550 kg
• Axle Centre to Fork Face: 672 mm
• Wheel Base: 1384 mm
• Service Weight with Battery: 1126 kg
• Wheels Type: PU
• Continuous working time 5-6 hours
• Battery: 24V/210 Ah
• External Charger: 24V/30A

Video of electric stacker 450cm, 2000kg SMITH

Benefits of Electric stacker SMITH 2t 4,5m

The SMITH Heavy-duty Electric Stacker is designed to meet the rigorous demands of industrial material handling, offering exceptional performance, precise control, and enhanced safety features. With its advanced motor and transmission system, integrated operation handle, and compact design, this electric stacker is a reliable and efficient solution for various material handling tasks. Whether in narrow spaces or demanding environments, the SMITH Heavy-duty Electric Stacker delivers the power, control, and reliability needed to optimize operational productivity and safety.

• Heavy-duty Electric Stacker: Robust solution for industrial material handling needs.
• Powerful AC Motor: Superior acceleration and energy-efficient performance.
• Precise Control: MOSFETS driver with stepless speed regulation and reverse braking.
• Integrated Operation Handle: Convenient controls for seamless operation.
• Ergonomic Design: Extended handle for comfortable and intuitive use.
• Space-efficient: Side-driven design for narrow spaces and small turning radius.
• YONGCI Motor: Small, lightweight, and highly efficient motor drive.
• Advanced Safety Features: Waterproof micro-switches for reliable operation in harsh conditions.
• High Lifting Capacity: Efficient lifting pump station for heavy goods handling.
• Turtle Speed Switch: Enables precise control during delicate operations.
• Compact and Nimble: Ideal for maneuvering in tight warehouse environments.
• Versatile Applications: Suitable for warehouses, manufacturing, and distribution centers.

Specs of SMITH Heavy-duty Electric stacker 2000kg, 2 tons, 4500mm, 4,5m

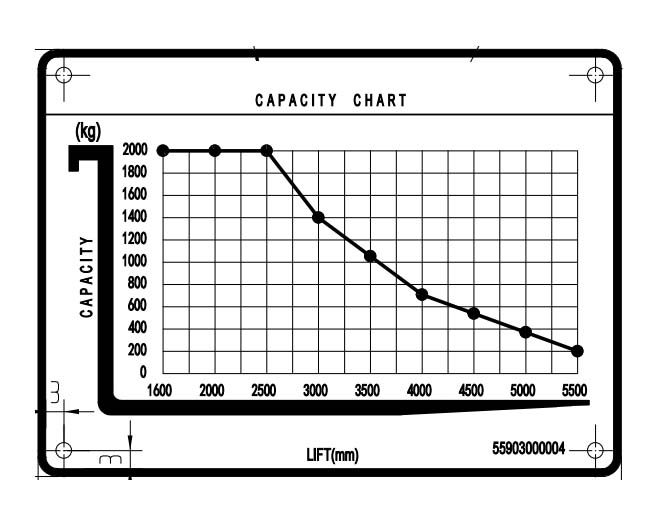

Lifting curve of electric stacker SMITH 2000kg

Buy an electric stacker of 2000kg, 450cm, or get an offer

Explore the efficiency and power of the Electric Stacker 2000kg with a lifting height of 450cm – the perfect solution for your heavy-duty material handling needs. Elevate your operations with superior acceleration, precise control, and advanced safety features. Whether you’re looking to purchase this robust electric stacker outright or seeking a tailored offer, we’ve got you covered. Experience the convenience of seamless operation, ergonomic design, and a compact footprint, making it ideal for various industrial settings. Don’t miss the opportunity to enhance your material handling capabilities – buy the Electric Stacker 2000kg, 450cm today online by clicking the button ADD TO CART or request a personalized offer by clicking the button GET OFFER to meet your specific requirements. Elevate your efficiency with a stacker designed for the demands of your workspace.
